产品特色
符合自动车部品、电气部品风雨水渍场合之耐水性、防水性之试验。

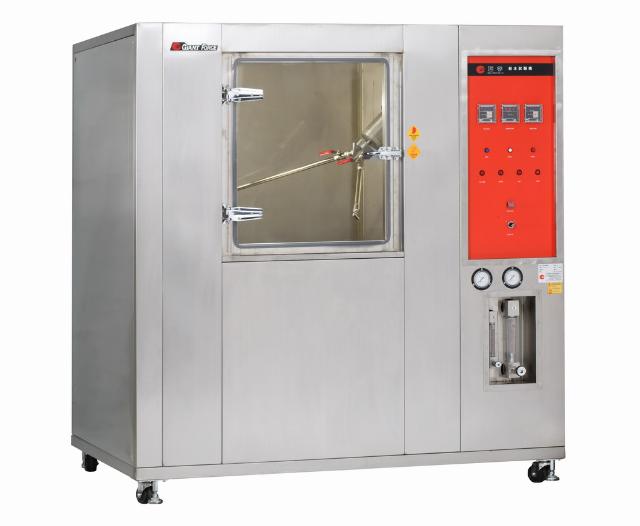

采用大型透明窗口(尺寸W60㎝×H70㎝)，方便直接观测内部试品状况。
数字设定、操作简便、保养容易。
型号GSRT-1728-E for IEC-526 和 CNS14165。


技术规范

Model GSRT-1728-A GSRT-1728-E Internal Dimension (W×H×D)㎝  120×120×120 120×120×120 External Dimension (W×H×D)㎝  175×185×130 175×185×130 Water Temp. Normal Normal Spray Type Total water flow (l /min) R1 1.8 1P×1 With in 1~1.5㎜/min (In drip box) R2 3.2 1P×2 With in 3~3.5㎜/min (In drip box) S1 24.5 1P×3 Angle±600, R:400㎜, 1.1 (l /min) S2 39.2 1P×4 Angle±1800, R:400㎜, 1.8 (l /min) Pressure of spray nozzle (kgf/cm2) R1 0.1 Flow rate of the water = 0.07 (l/min). 1P×3, Raidus:400㎜, Number of open holes=16, total water flow:1.1(l/min). 1P×4, Radius:400㎜, Number of open holes=25, total water flos:1.8(l/min). ※Radius:200㎜, R400㎜. (For 1P×3, 1P×4 only) R2 0.3 S1 1.0 S2 3.0  Test Specimen Frame (RPM) 17RPM 1RPM Spray Nozzle Rotation Speed 23RPM Swing 60 ℃ from vertical for 4 seconds at one time Swing 180 ℃ from vertical for 12 seconds at one time Material Internal SUS#304 SUS#304 External SUS#304 SUS#304 Accessories Chamber lamp, Wiper, Casters with Adjusters Chamber lamp, Wiper, Casters with Adjusters Power Source 1Phase AC220V 50/60HZ, 4K.W. 1Phase AC220V 50/60HZ, 4K.W.
